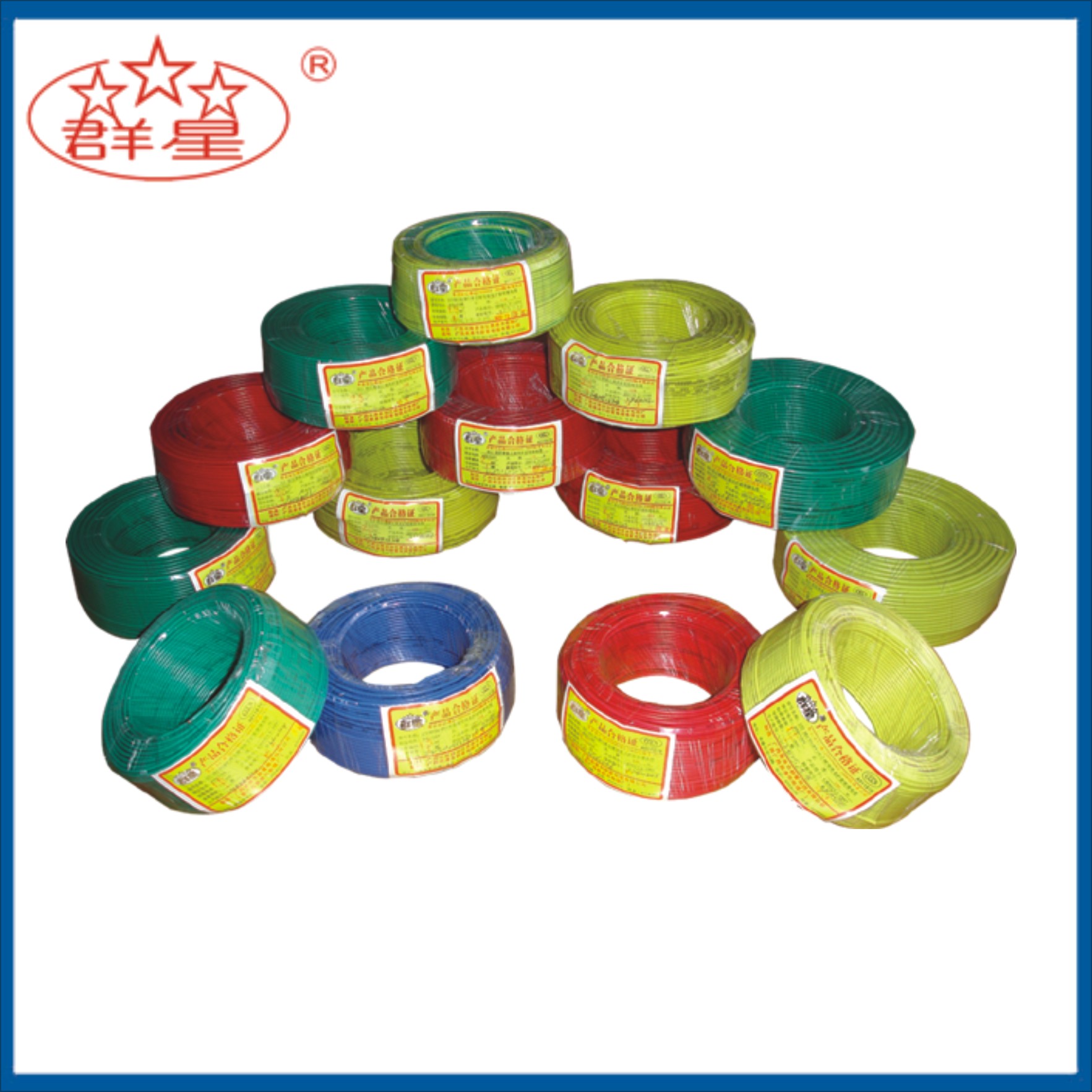

BV 銅芯聚氯乙烯絕緣電線
詳細描述
產品詳細描述
聚氯乙烯絕緣電線
PVC insulated wire and cable
一、 產品標準Reference Standards
本產品按GB5023-1997《額定電壓450/750V及以下聚氯乙烯絕緣電纜》、JB8734-1998《額定電壓450/750V及以下聚氯乙烯絕緣電纜和軟線》標 準生產，同時還可根據用戶需要按國際電工委員會推薦標準IEC、英國標準、德國標準及美國標準生產。
The product is manufactured according to the standards of GB5023-1997 and JB8734-1998 or IEC,BS,DIN and ICEA upon request.
二、 適用范圍Application
本產品分別適用于額定電壓450/750V及以下的動力裝置、固定布線及撓性連接電器之用。
The product is suitable for power installation fixed wiring or flexible connection for electrical appliances with rated voltage up to and including 450/750V respectively.
三、 使用特性 Operating characteristics
● 額定電壓Uo/U為450/750V、300/500V、300/300V。
Rated voltage Uo/U：450/750V、300/500V、300/300V。
● 電纜導體的允許長期最高工作溫度：
Max. permissible continuous operating temperature of the conductor:
227 IEC 07(BV-90)…………………………90℃
227 IEC 08（RV-90）………………………90℃
其它型號For other types …………………70℃
●電纜敷設時環境溫度應不低于0℃
The ambient temperature under installation shall not below 0℃
● 電纜彎曲半徑：The bending radius of cable：
D≤25mm …………………………………≥4D
D＞25mm …………………………………≥6D
（D-電纜外徑 Diameter of the cable ）
| 額定電壓 | 標稱截面 | 導體結構 | 絕緣厚度 | 標稱外徑 | 平均外徑上限 | 參考重量 | 20℃導體最大直流電阻 |
| U0/U | |||||||
| V | mm2 | 根/Φmm | mm | mm | mm | kg/km | Ω/km |
| 450/750 | 4 | 1/2.25 | 0.8 | 3.85 | 4.4 | 47 | |
| 4 | 7/0.85 | 0.8 | 4.15 | 4.8 | 50 | ||
| 6 | 1/2.76 | 0.8 | 4.36 | 4.9 | 67 | ||
| 6 | 7/1.04 | 0.8 | 4.72 | 5.4 | 71 | ||
| 10 | 1/3.58 | 1 | 5.58 | 6.4 | 112 | ||
| 10 | 7/1.35 | 1 | 6.05 | 6.8 | 119 | ||
| 16 | 7/1.70 | 1 | 7.1 | 8 | 179 | ||
| 25 | 7/2.14 | 1.2 | 8.82 | 9.8 | 281 | ||
| 35 | 7/2.52 | 1.2 | 9.96 | 11 | 379 | ||
| 50 | 19/1.78 | 1.4 | 11.7 | 13 | 508 | ||
| 70 | 19/2.14 | 1.4 | 13.5 | 15 | 716 | ||
| 95 | 19/2.52 | 1.6 | 15.8 | 17 | 972 | ||
| 120 | 37/2.03 | 1.6 | 17.41 | 19 | 1228 | ||
| 150 | 37/2.25 | 1.8 | 19.35 | 21 | 1510 | ||
| 185 | 37/2.52 | 2 | 21.64 | 23.5 | 1892 |
